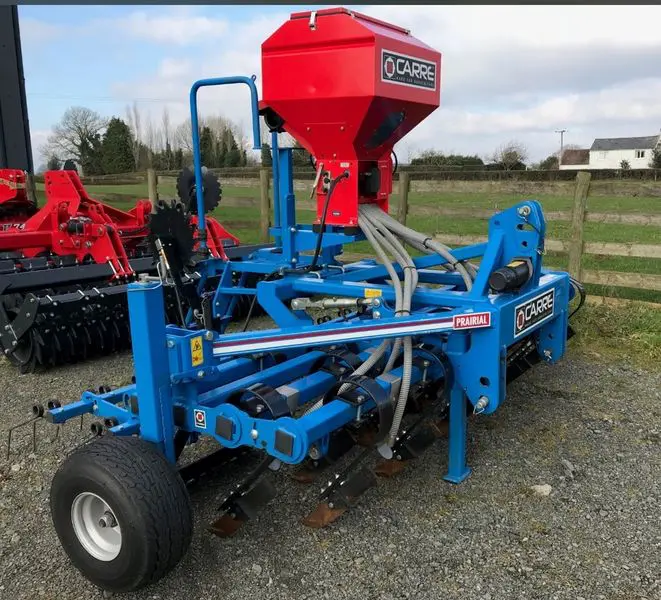

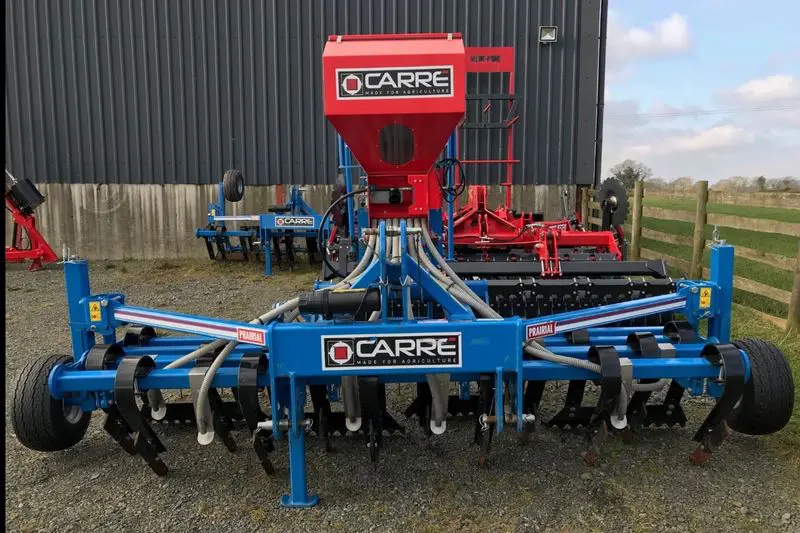

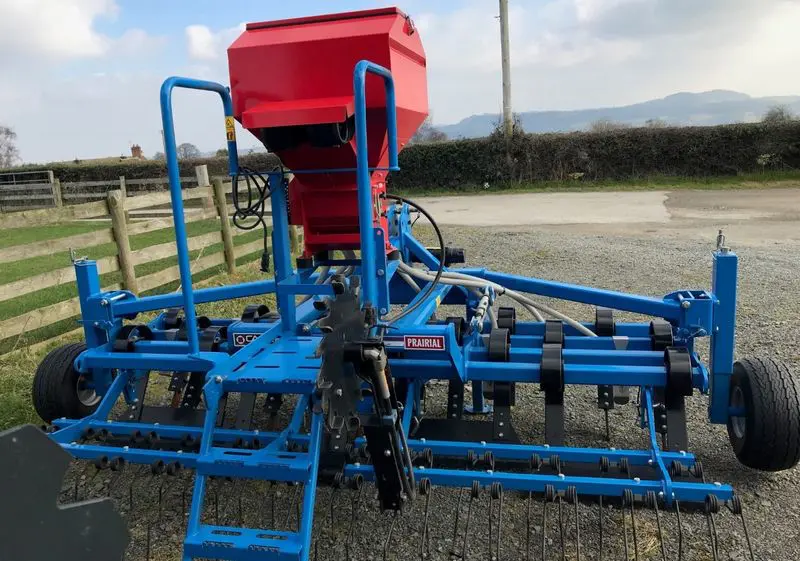

Carre Prairial S Singlepass 3m c/w Air Seeder (Meadow Preperation)

An evolution of the chain harrow/grass harrow, the Carre Prairial Singlepass facilitates meadow regeneration, scarification, molehill removal, cow dung and moss removal.

Specifications

Use

Meadow regeneration
Scarification
Molehill removal
Cow dung and
Moss removal.
Cutter working depth:up to 8cm.

General Characteristics

The PRAIRIAL’S original design provides great operating stability at high speed (up to 12 km/h).
3-point attachment by pins,Categories Nos.2/3
100×8 tubular frame 120x60x8 and 200x100x5
4 knife-holding and levelling blade holding bars 70x5mm.
Reversible knives with a pitch of 200 or 250mmon 2 bars at the front.
The knives’operating depth is adjustable bymeans of a screwed push bar.
Staggered levelling blades on 2 fixed bars at the rear.
The knives and blades are fixed on flexible blades.
8mmdia. rootrake harrow on 2 rows at the rear with adjustable aggressiveness.
Hydraulic folding from4.50m:
Transport width:
Fixedmodel:3m
Foldingmodels:2.50m
Pair of tyred depth gauge wheels 18 x 8.50-8 (460 dia. x 220)

Safety

Controlled fall-prevention and double flaps on the jacks of the folding models.
3 automatically locking stands.
Transport width 2.50mon the folding models.
Access gangway on the SEMLOC sower.
Signalling and lighting included on the folding models

Solidity

3rd point pin No.2/3mounted on steel plate 20mmthick.
Compact, single-piece frame, fully welded and including attachment to avoid taking up play.
Polyamide slides and rings to avoid steel/steel contact by the moving parts.
The fitting of levelling blades on flat spring tines 80×12 provides resistance to significant efforts.
Optional fitting of carbide knives.

Comfort

Screwed push bar adjustment of the depth control knives.
Handle screw systemwith rule for adjusting the depth control wheels.
Sector pin adjustment of the depth control harrow.
Reversible knives with significant wear range.
Clip pins provide rapid harrow tines changing.

Efficiency

Oscillation of the extensions on the folding models to adapt to ground irregularities.
Choice of knife pitch: 200 or 250mm
Crenellated levelling blade for maximum aggressiveness and angle of inclination providing perfect operating stability. Staggered arrangement to improve stone evacuation.
Can be combined with the SARCLERSE weeding harrow by adding rear lifting.
The rootrake harrow is removed in this case.
