Zetor Forterra HSX

The Zetor Forterra HSX range covers 5 models ranging from 96hp to 136hp. All models are covered by a 2 year or 2400 hour warranty

Specifications

Gearbox

The new five-speed gearbox with a three-stage torque multiplier and power shuttle offers 30 speeds forward and 30 reverse, as well as automatic shifting of the torque multiplier. New gear shift controls make gear shifting easier.

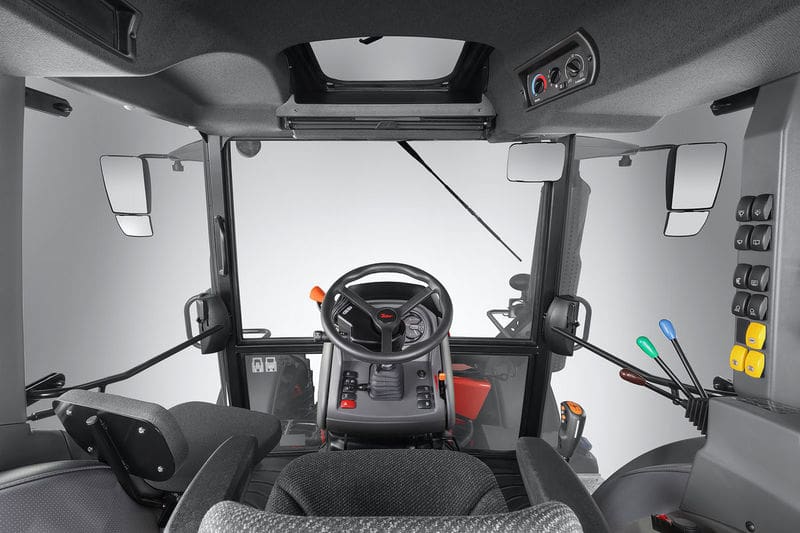

Cab

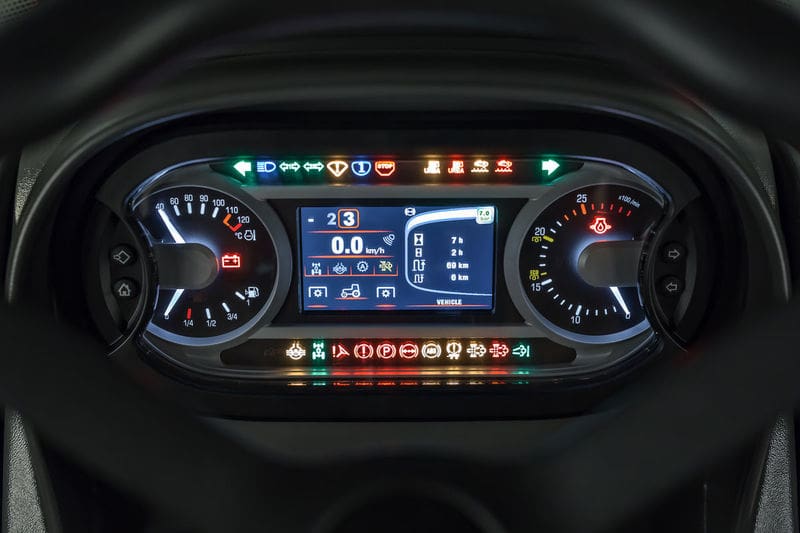

An LCD display instrument panel with information content for an operator and a CAN protocol electronics for easy serviceability. A safety switch in the driver’s seat for the operator’s safety.

Engine

Forterra HSX tractors are equipped with 16-valve engines known for high torque (torque backup more than 36 %) and extremely low fuel consumption. The new 225 litre fuel tank is sufficient for all day work.

Hydraulic system and PTO

Two auxiliary cylinders of the hydraulic system ensure uniform load distribution on the tractor and lifting force up to 70 kN. Forterra HSX models are equipped with the very latest technology of the automatic HitchTronic three-point suspension control.

Downloads

traktory-forterra-en.pdf

(PDF 9.51 MB)

You may need to download Adobe Reader to view files in PDF format, or Microsoft viewer software to view Word, Excel or Powerpoint files.

Contact us about ‘Zetor Forterra HSX’

Would you like to find out more about the Zetor Forterra HSX range? Call us on 01886 853 637 or fill in the contact form below and we will be in touch.
