Zetor Proxima CL

The Proxima CL Range boasts both power and manoeuvrability, and on top of that, down to earth value. All Proxima tractors are backed by a 2 year or 2400 hours manufacturer’s warranty on all major mechanical components.

Proxima CL models have an option of a 30kph or 40kph 12 forward, 12 reverse gearbox with a manual shuttle and 540/540E Rear PTO.

Proxima CL 80 76hp – available in 4WD

Proxima CL 90 87hp – available in 4WD

Proxima CL 100 96hp – available in 4WD

Proxima CL 110 106hp – available in 4WD

Specifications

Engine

Proven by generations of users
ZETOR TRACTORS a.s. manufactures the largest number of compression ignition engines in the Czech Republic. This manufacturing tradition dates back to the 1920s.
Zetor tractors do not use power boost, i.e. power available only under certain conditions. Full power is always available regardless of load. Proxima tractors are equipped with ZETOR engines meeting the Stage IV emission standard. The engines include an active DPF and the SCR system. Category T2 Proxima tractors use engines with Stage IIIB emission level, only equipped with a DPF filter (without urea need).
In-house development and manufacture – guaranteed precise workmanship using quality materials.
Low consumption – ensures a very low consumption of operating fluids.
Mechanical injection pump – reliable and trouble-free operation, long service life.
Two balance shafts – reduce vibrations and make the engine run more smoothly.
Pressurized oil-cooled piston crowns – increase combustion efficiency and prolong engine life.
Optional coolant heater – reduces warm-up time, thus saving fuel.
Glow plug in every cylinder (direct combustion engine pre-heating) – guarantees reliable starting at low temperatures.
The exceptional popularity of Zetor engines is based on low fuel consumption, high reliability and simple design – these reward the customer not only with low purchase costs, but also low operating costs and great reliability. The 16-valve engines obtained one of the best evaluations in a stringent test carried out by the German Agricultural Association (DLG). Tractors with these engines therefore rank among the most economical in the market.

Gearboxes

A solution for everyone
In-house production – control and enforcement of high quality standards.
Service life – high-quality and durable materials ensure long service life.
Variability of the range – solution tailored to customer’s needs.
Gear ratio – optimizes power to weight ratio.
Comfort – simple and comfortable shifting.
Length – wheelbase length varies depending on model.
PTO ground speed – offered as a standard.
Gearboxes for standard Proxima CL models are the most universal and operate mechanically only. They are manufactured in several versions. Proxima is the only model offering creep gears – in the 20/4 version – and has the lowest travelling speed 0.22 kph (at 2,200 rpm rated engine speed). Thanks to their simplicity and minimum breakdown rate, they are perfectly suited for hard work.

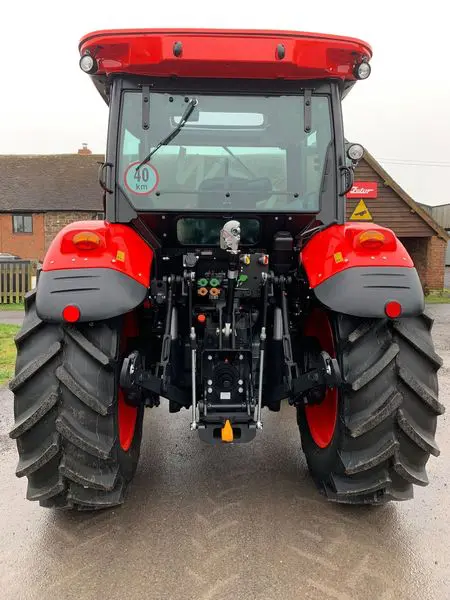

Hydraulics

Reliable control at every turn
Zetor was the first to offer the HITCHTRONIC function – a subsequent winner of many awards.
Gearboxes for the Proxima series are manufactured right at the ZETOR TRACTORS a.s. manufacturing facility. Making them in-house enables significant control over quality, design and a considerable variability in the available options. The use of highquality materials ensures great endurance and a long service life.
Gearboxes for standard Proxima models are the most universal and operate mechanically only. They are manufactured in several versions. Proxima is the only model offering creep gears – in the 20/4 version – and has the lowest travelling speed 0.22 kph (at 2,200 rpm rated engine speed). Thanks to their simplicity and minimum breakdown rate, they are perfectly suited for hard work.
In-house production – control and enforcement of high quality standards.
Outer lifting cylinders only – no inner cylinder.
Good lifting force curve.
Good serviceability.
Forks on arm ends – no overhung pin.
Lowering control with hydraulic lock function.
Sensitive lowering of implements and safe transport.
Auxiliary distributor integrated right on the hydraulic top cover.
Parts without kick-out have a mechanical slide valve lock in end working positions.
Bowden cable controllers with mechanical lock of the “n” position using a moving sleeve.
External three-point hitch control with fine arm advancement – increased comfort when mounting implements.

Specification

Maximum lifting force 42 kN.
Hydraulic quick couplers:
4 (P+ and PW), 3 or 2 or 1 sections
1 section with kick-out, 3 sections with return valve
Mechanical lock in the neutral position of the distributor (sections without the kick-out).
Three-point hitch controlled flow rate.
Infinite external control of lower link arms.
Suction filter at the hydraulic pump intake.
Top link sensing (draft control).
A ll hydraulic controls are external (including hydraulic distributor).

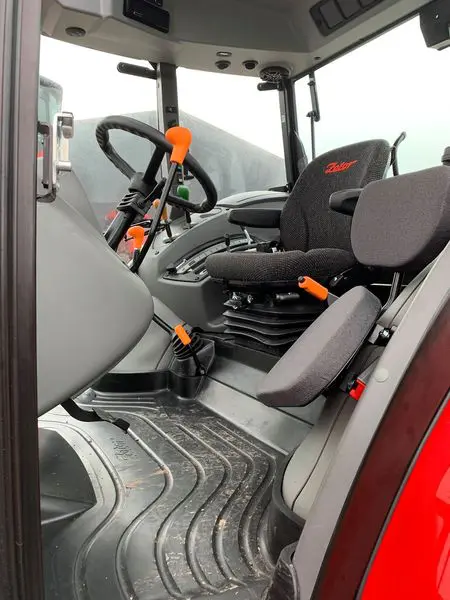

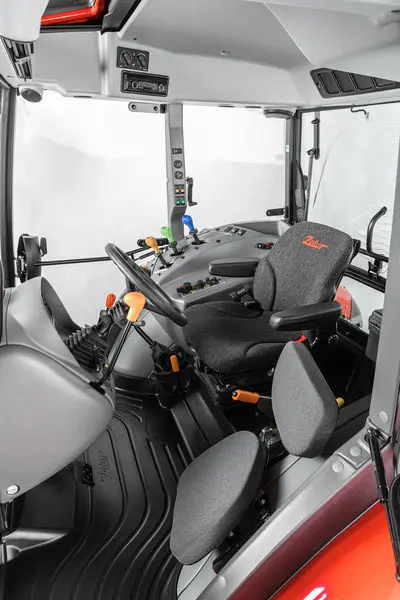

Cab

Comfort and room
Cabs have been designed to be convenient, comfortable and safe. They feature plenty of space around the driver and optimum allround visibility. The operator has an excellent view and control over the implements being used. This also includes an unobstructed view of the front loader through the roof hatch.
Control is simple, well-arranged and very intuitive. All controls are always at hand.
